Jewelry Continuous Casting Machine

Jewelry continuous casting machine is designed for high-density gold, K gold, silver and other enhanced precious metal plates, rods, rectangular rods, circular tubes, and other shapes of products.

Adopting gas protective melting, accurate temperature control, and auto stirring function make the finished product’s surface bright, with no air hole and oxidation.

Best metallurgy and high-precision by optimal casting technology and top-machine engineering. SuperbMelt continuous casting machines are extremely fast, reliable, and cost-effective.

Jewelry continuous casting machine

Parameter of Jewelry Continuous Casting Machine

Model numberSPB-LS4SPB-LS8
Power sourceThree phase 380V±10%, 50/60HzThree phase 380V±10%, 50/60Hz
Power15 kw25kw
Max Current15A26A
Applicable metalGold, Silver, Copper, Brass, Bronze, and their alloysGold, Silver, Copper, Brass, Bronze, and their alloys
The Max capacity24K Gold: 5.0 kg 18K Gold: 3.5 kg 925 Silver: 2.5 kg24K Gold: 8.0 kg 18K Gold: 6.0 kg 925 Silver: 4.0 kg
Melting time5 min8 min
Casting ApplicationRod: φ4-φ20mm Tube: Min φ9*12mm Max φ52*60mm Bar: Min T5*W5mm Max T20*W70mmRod: φ4-φ20mm Tube: Min φ9*12mm Max φ52*60mm Bar: Min T5*W5mm Max T20*W70mm
Max temperature control R-type1600℃1600℃
Max temp control k-type1100℃1100℃
Max drawing speed40 cm/minute40 cm/minute
Dimension1120×840×1560 mm1120×840×1560 mm
Weight195 kg205 kg
Protective gasNitrogen or argonNitrogen or argon
Heating systemInduction heatingInduction heating
Control of temperatureBy PIDBy PID
Accuracy of temperature±2 degrees Celsius±2 degrees Celsius

Jewelry continuous casting machine is economical, practical and efficient features is your first choice. Besides it’s high efficiency, low wastage, flexible operation brings your ideal casting effect.

1.The fully integrated system ensures consistent casting quality and complete inert gas protection of crucible and die system.
2.24H continuous working yields high production rate.
3.Automatic control of the casting parameters which can produce alloys or semi-finished products in different shapes and sizes in the shortest time.
4.Unique induction heating with auto stirring function to strengthen the power and to make even colored items and big casting capacity in order to improve production efficiency.

Application of Jewelry Continuous Casting Machine

Precious metal continuous casting machine application

Square copper bar

Square silver bar

Hexagon silver bar

Hexagon copper bar

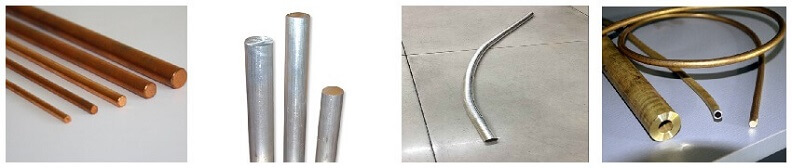

application of Precious metal continuous casting machine

Copper bar

Silver bar

Silver tube

Copper tube & Copper rod
