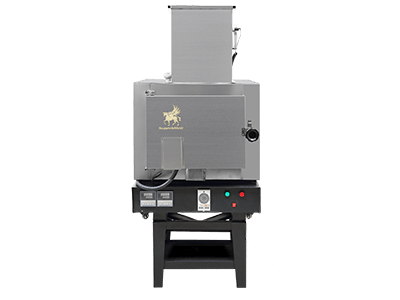

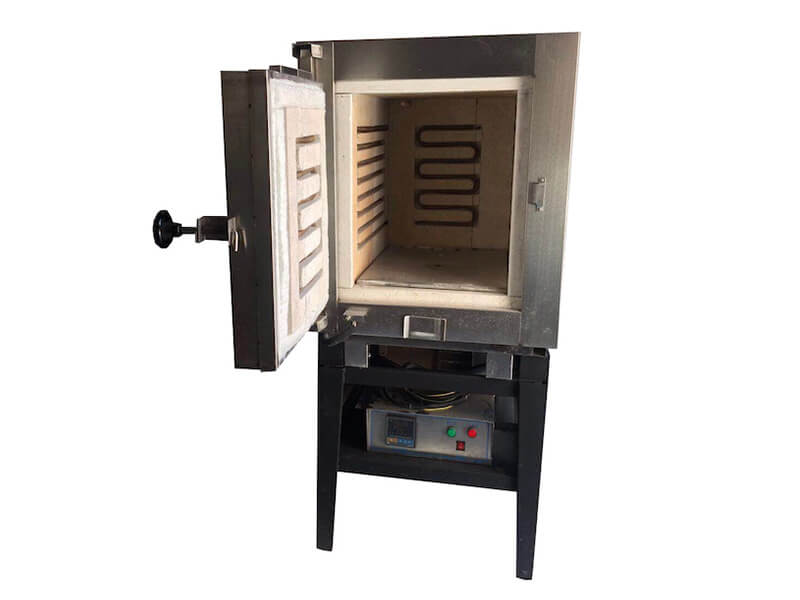

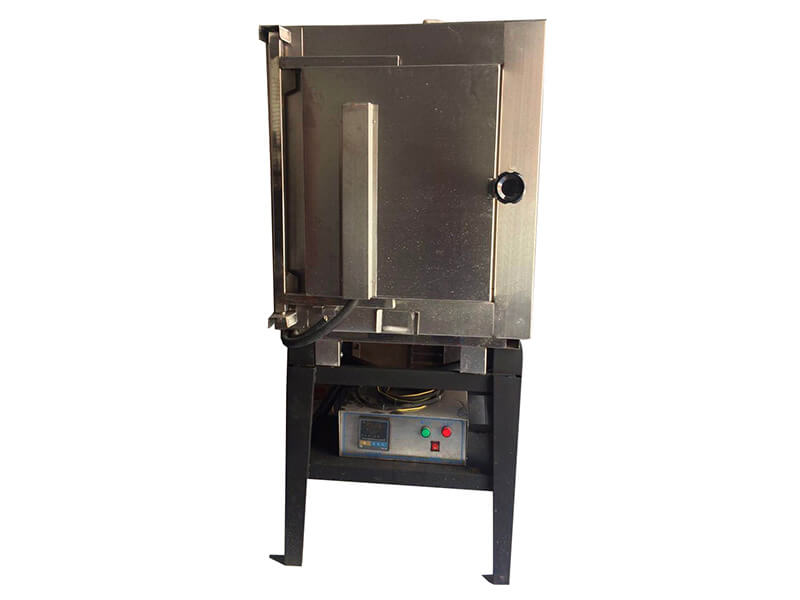

Wax Burnout Furnace
Wax burnout furnace is used for melting and flowing the wax in the plaster mold and a hollow plaster mold is obtained in the process of jewellry casting.
Special design for two-time burning; it will re-collect those not fully burnt during dewaxing process and let them to be burnt again for full combustion, and reducing the wax flavor in the environment as much as possible.
| Model number | SPB- HTF | SPB-WF2 | SPB-WF4 | SPB-WF6 | SPB-WF12 | SPB-WF18 | SPB-WF24 | SPB-WF32 | SPB-WF40 |
| Power source | 3 phase 380V, 50/60Hz | Single phase 220V | Single phase 220V | Single phase 220V | 3 phase 380V, 50/60Hz | 3 phase 380V, 50/60Hz | 3 phase 380V, 50/60Hz | 3 phase 380V, 50/60Hz | 3 phase 380V, 50/60Hz |
| Power | 11.5kw (9kw+2.5kw) | 2.5kw | 3kw | 4kw | 6kw | 9kw | 9kw | 12kw | 12kw |
| Capacity | 24 pcs of 4*9 inch flask | 2 pcs of 4*9 inch flask | 4 pcs of 4*9 inch flask | 6 pcs of 4*9 inch flask | 12 pcs of 4*9 inch flask | 18 pcs of 4*9 inch flask | 24 pcs of 4*9 inch flask | 32 pcs of 4*9 inch flask | 40 pcs of 4*9 inch flask |
| Operation temperature | 850℃ | 850℃ | 850℃ | 850℃ | 850℃ | 850℃ | 850℃ | 850℃ | 850℃ |
| Chamber size | 420* 550* 500 mm | 300* 150* 270 mm | 300* 300* 270 mm | 450* 300* 270 mm | 450* 300* 520 mm | 450* 300* 520mm | 570* 440* 520 mm | 580* 580* 530 mm | 700* 580* 530 mm |
| Dimension | 850* 1200* 1900 mm | 700* 400* 750 mm | 700* 550* 750 mm | 800* 550* 750 mm | 800* 550* 750 mm | 800* 720* 750 mm | 900* 720* 750 mm | 970* 840* 850 mm | 1040* 840* 850 mm |
Features of Burner Wax Burnout Oven
1. SPB- HTF is special design for two-time burning; it will re-collect those not fully burnt during dewaxing process and let them to be burnt again for full combustion, and reducing the wax flavor in the environment as much as possible.
2. Fully automatically controlled temperature, with Over-temperature protection and Break-even protection functions, to prevent furnace from losing control and getting burnt, causing fire risk.
3. Proven Intermittent power outage function, which controls the heating speed, ensures the sintering quality of gypsum mold, and improves the yield rate of castings.
4. Heating Element design layout is reasonable, temperature in furnace is uniform and air convection is good-good for the water evaporation and discharge after heating the wet work-pieces, therefore improving the lifetime of heating elements.
5. The furnace door is equipped with safety device; when the doors open, furnace will shut down automatically to ensure the safety of the operators.
6. Adopting the new high temperature resistance, lightweight materials, having good characteristics of high efficiency, energy saving, and environmentally friendly.
7. Furnace is small but the inner dimension is big and durable, easy to repair; and when replacing heating wire, there is no need to disassemble the furnace body and refractory plate.
