Vacuum Gold Bar Making Machine

Vacuum Gold Bar Making Machine Vacuum Gold Bar Making Machine
vacuum gold bar making machine for bullion vacuum gold bar making machine for bullion

Vacuum Gold Bar Making Machine

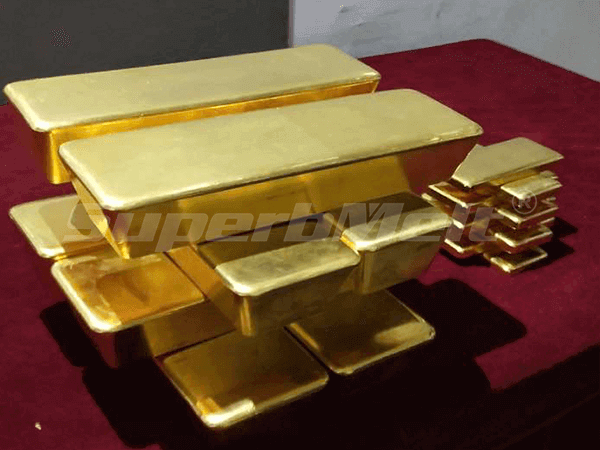

The vacuum gold bar making machine is designed for quality gold and silver bars, ingot and bullion casting with customized weight and size. The gold bar quality is approved for LBMA deal.

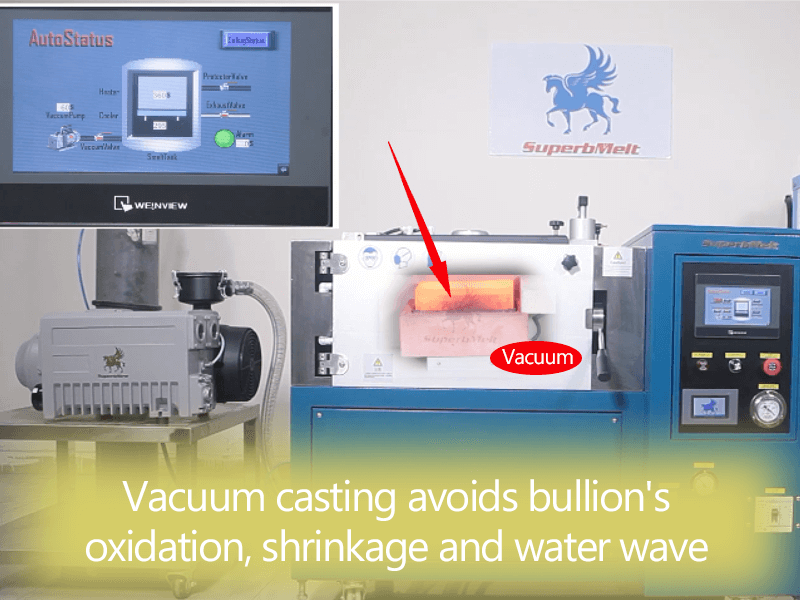

The whole casting process is under the vacuum and inert gas protection. It fully avoids bullion’s oxidation, loss, shrinkage, and water wave. There is almost no loss of precious metal.

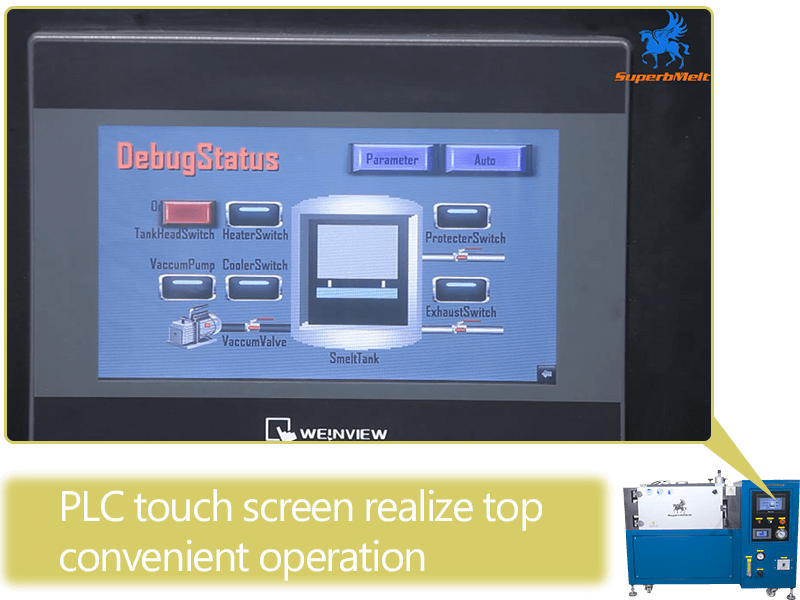

Its advanced features like PLC touch screen control, fully automatic casting and 24 hours continuous working  show its latest green technology in gold industry. It highly  improves production efficiency, bullion’s quality safety, and saves liberation of manpower. Anymore, it is flameless to ensure worker safety comparing with traditional casting ways.

It is the top saving, safe and efficient way for gold and silver bar making worldwide.

See video below for reference.

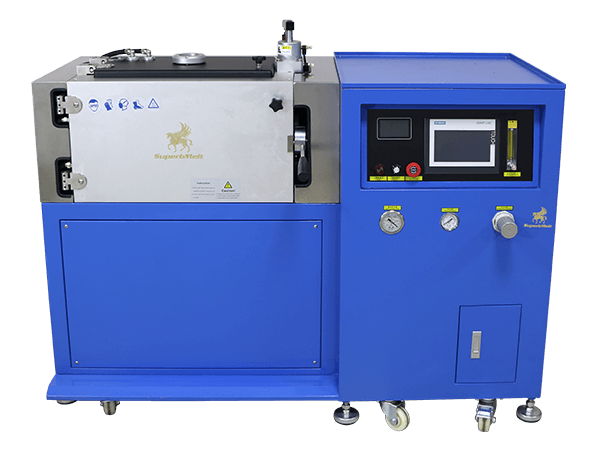

Vacuum gold bar making machine

Structure Of Vacuum Gold Bar Making Machine

Parameters Of Vacuum Gold Bar Making Machine

Model numberSPB-JD4SPB-JD8
Power sourceThree phase 380V±10%, 50/60HzThree phase 380V±10%, 50/60Hz
Power45 kw75 kw
Control systemPLCPLC
Applicable metalGold and silverGold and silver
Casting timeAbout 15 minsAbout 13 mins
The Max capacity4 pcs of 1kg bar or 15kg bar4 pcs of 1kg bar or 15kg bar
Dimension1450*620*1080 mm1450*620*1080 mm
Weight285 kg295 kg
Protective gasNitrogen or argonNitrogen or argon
Vacuum pump63 m³/hour63 m³/hour
Heating technologyInduction heatingInduction heating
Casting modeAuto and manual mode switchAuto and manual mode switch

Features Of Vacuum Gold Bar Making Machine

  1. It is flameless to ensure worker safety.
  2. 24 hours continuous working will meet your long-time casting goal.
  3. One button realizes fully automatic casting process
  4. It avoids bullion’s oxidation, shrinkage, and water wave under vacuum
  5. The machine provides the following advantages: Quiet operation, High efficiency, Self-diagnostics, low pollution, and low noise.
  6. The casting condition is fully sealed to avoid flame touch for worker safety.
  7. It is the most saving, safe and efficient way for gold and silver bar making until now.
  8. PLC control system, automatic casting, convenient operation, liberation of manpower

The Most Effective Gold Bar Casting Method

It is generally believed that the quality of a gold bar depends entirely on the gold bar casting method used in producing it. Over the years, different approaches for casting gold bars have emerged, from the traditional method to Induction Tunnel Systems. However, Vacuum Gold Bar Casting has turned out to be the most effective method, based on the positive feedback from users.

Traditional Gold Casting Method

The traditional gold casting method was adopted in the earliest periods of the gold-rush years, and it is very much the same method utilized in several parts of the world, most especially where there is limited access to the latest gold bar making machines or technology.

These are the procedures for using the traditional gold casting method:

  • The gold is melted in an open, “holding” crucible with heat from an induction or a gas furnace that can increase the temperature of the environment where the heating is taken place.
  • Some amount of the melt gold is tilted into a pre-heated “transfer” crucible.
  • Dip sample of gold (about ½ Oz gold) may be taken for assaying purposes.
  • To size the gold bar, the melted gold in the “transfer” crucible is then poured through a soft gas flame into a dressed and pre-heated cast-iron bar mold.
  • The mold is placed on a balance during pouring, and when the expected weight has been reached, the process is completed.
  • The gold bar is then tilted into a tank of water for cooling (quenching).
  • The gold bar is then placed on the table for cleaning using a soft cloth to remove any stains or dirt.
  • The cleaned gold bar is then weighed, checked, approved, and marked for completion
The major headaches with the traditional gold casting method is that it requires plenty of workers; it is environmentally unfriendly; some gold material may be lost during the procedures; and, there is no way to prevent oxidation, and other corruption that may affect the gold bar’s quality.

Vacuum Gold Bar Casting Method

The Vacuum Gold Bar Casting, however, takes places entirely under the protection of vacuum and inert gas. The essence of this is to prevent any loss of metal, oxidation, water wave, shrinkage, and guarantee workers’ safety. Unlike the traditional gold casting method, it is flameless: So, vacuum gold bar casting method is environmentally friendly and cost-effective, since it doesn’t require a lot of labor because of its automation feature.

The Procedures for Vacuum Gold Bar Casting Method

Highlighted below are the simple procedures for producing high-quality gold bars and bullions using the vacuum gold bar casting method.
  1. Weigh the materials into the mold by using a good and sensitive weighing device to measure the actual amount of gold material that would go into making a particular weight (size) of the gold bar.

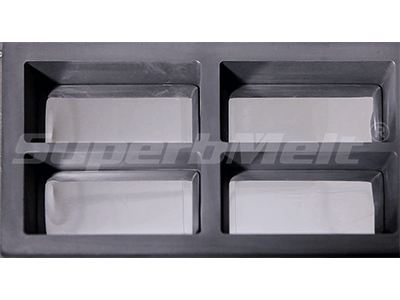

  2. Pour the weighed material into the crucible-like device that will give the gold bar its desired shapes.
  3. Turn on the vacuum gold bar making machine’s power switch.
  4. Set some parameters on the gold bar making machine that will facilitate the casting processes—it is essential to set the timing of heating, vacuum cooling, and alarm that will sound off once the casting has been successfully completed.
  5. Press “Tank Head Switch” to open its cover. Then lower the crucible-like device into it.
  6. Press “Cooler switch” of the gold bar making machine to lift the cooling board, and then press “Auto” to start the casting. This is an automated system that functions noiselessly and with limited number of workers. The vacuum protects the bars from oxidation and porosity.
  7. The casting procedure will be completed according to the timing set at the onset on the gold bar making machine.

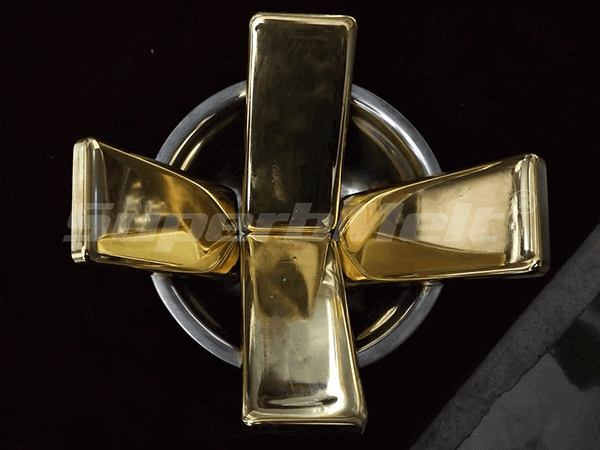

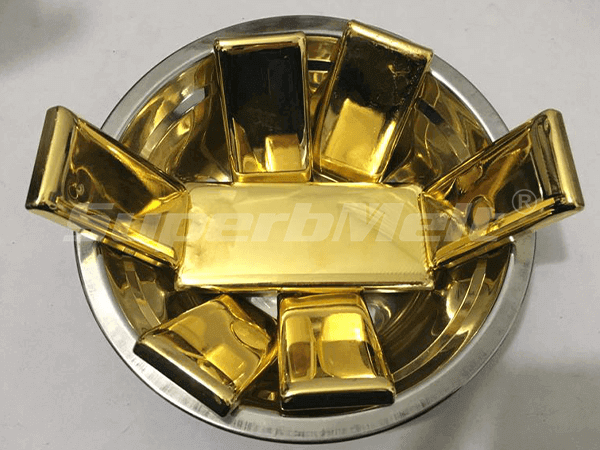

  8. Take out the cast gold bars and carefully place them in the designated receptacles for storage. The bars will have shining, mirror-like surfaces, revealing that they have not been affected by oxidation, shrinkage, and porosity. And there is almost no loss of material.

Vacuum Gold Casting Method versus Traditional Gold Casting Method

In order to fully understand the revolutionary qualities of the Vacuum Gold Casting Method, the table below compares its procedures and functions with that of the Traditional Gold Casting Method.
CriteriaTraditional MethodVacuum Method
LaborA lot of workers are requiredVery few workers are needed
Operational efficiencyProcesses are manually carriedThe entire gold-casting procedure is automated
Cost efficiencyMore expensive: Many workers are involved, and there could be substantial loss of materialCost-efficient: Very few smelting workers are needed, and there is almost no loss of material
Gold bar qualityNot so great quality, because of oxidation, shrinkage, and porosityGreat gold bar quality due to the absence of oxidation, shrinkage, and porosity
Workers’ safetyUnsafe; smelting workers may be exposed to flame and excessive heatVery safe: The system is noiseless, flameless, and does not emit heat to the surrounding
Environmentally friendlinessPoor environmental conditionsBetter environmental conditions: No pollution, noise, hazards, and so on
TimelinessMay be untimelyTimely operation
Human error possibilityHuman errors aboundHuman errors have been proactively eliminated


Factors to Consider While Choosing an Effective Gold Casting Method

Outlined below are some guidelines to follow while choosing an effective gold bar casting method:
  • High quality: It is imperative that you should pay serious attention to the overall quality of the gold bars/bullion you are producing. This is because quality will eventually affect their market appeal or value. It is a well-known fact that a shrunk gold bar will not command the same value and price as the one that has no shrinkage.
  • Workers’ safety: You need to make sure that your smelting workers are safe while carrying out their assigned duties. It is advisable that you use a procedure or gold bar casting method that will not expose them to dangerous heat, smoke, and flame. It is somehow hard to find experienced smelting professionals in the labor market; so, it is your responsibility to protect those that are currently working for you.
  • Cost-efficiency: The surest way to maintain your gold-making business is to operate profitably. And the best way to achieve this lofty goal is to make sure that your overheads and other expenses are systematically reduced. When you selected a cost-efficient gold-making method, you won’t only be able to save money on your expenses, but you will also be able to raise your profitability profile.
  • Environmentally friendly method: Choose a gold-casting method that will pass the test of environmentally friendliness. This entails that your selected gold bar casting method will not produce heat, pollution, noise, harmful side-effects, and other dangerous bye-products that may affect the health of your workers as well as of those in the neighborhood where your operations are based.
  • Smoothness of operations: When you selected a gold-casting method that is not too complicated to operate, it will automatically increase your overall performance. Take for instance, the traditional gold casting method involves series of difficult and sometimes dangerous procedures. On the other hand, vacuum gold casting method is simple, direct, and effective—it could be run by a “toddler” once he/she learns the simplified procedures that should be undertaken.
  • System continuity: On top of all other factors, you should select a gold-smelting method that will guarantee the continuity of your business operations. This can be achieved if you are operating profitably and producing gold bars and bullion that are of great quality. More so, if your procedures are environmentally friendly, you will be admired by both the gold standardization organizations and your clients. Your business will receive referrals from new clients who will, in turn, introduce the others to you. Unfortunately, the traditional gold bar casting method threatens system continuity because there are some risks involved in adopting this method.

Vacuum Bullion Casting Machine Application for top quality gold and silver bars. Comparison with the one without vacuum

comparison of gold silver bars quality between different making machines
