Jewelry Laser Welding Machine

Jewelry Laser Welding Machine
Jewelry Laser Welding Machine

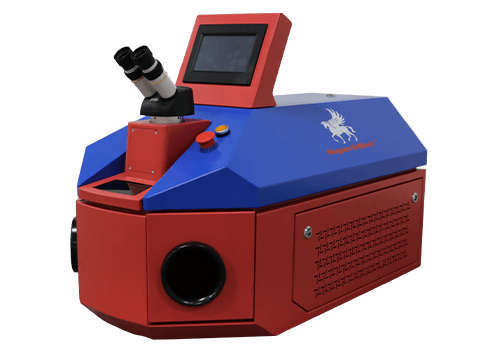

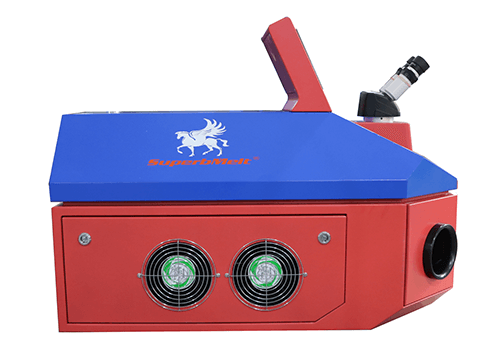

Superbmelt desktop jewelry laser welding machine is ideal for a wide range of metal joining and repair applications in the jewelry industry. The system’s compact, portable, space-saving design, coupled with top laser well-known reputation for high quality, efficient laser sources, make the Superbmelt laser welding machine an excellent value.

  • High level of automation and simple welding process
  • Non-contact operation method can meet the requirements of cleanliness and environmental protection.
  • It is widely used in the processing of dental dentures, keyboard welding, sensor welding, battery sealing cap welding, etc.
  • Extremely high work efficiency, beautiful finished products, small welding seams, large welding depth and high welding quality
Model numberSPB-LWM
Voltage1 phase 220v 50 30 A
Laser wavelength0.3-20 nm
Pulse Width0.3-20 ms
Pulse frequency1-10 HZ
Minimum Spot diameter0.2mm
Laser power200W
Maximum single pulse energy30J
Aiming and positioningmicroscope
Cooling methodAir-cooled
Dimension105*60*70cm
Weight75 kg

Why SuperbMelt Laser Welding Machine

Professional R&D Team:
Over 15 years R&D experience in gold machinery with a top engineer team supported
High Quality:
Only choose famous brand main electric components for production
ISO CE SGS Approved:
Professional certification bodies certify that the machines are of high quality

Helpful Resource For Your Reference

More Gold Melting and Casting Machinery For Your Choice

Any Question About SuperbMelt Laser Welding Machine

Jewelry Laser Welding Machine Buying Guide

Looking for the best laser welding machine? That would be a great investment. Thankfully, we the Superbemelt have what you are looking for. Despite your current location, we can reach out to you with a deal of your life. Whether you are an experienced operator or a startup, we’ve got everything to ensure that your business is well covered.

You need to get in touch with us for the best jewelry laser welder that will take the performance of your company to a whole new level. Read on and discover the best applicable ways to get the right laser welding machine that your money can buy.

Chapter 1:

Do You Really Know That Jewelry is Welded?

Many jewelers are still not aware that they could weld jewelries to come up with fascinating final products. The use of laser welding machines is the most common technique used in jewelry welding. It can be used to add unique shapes and designs to jewelry before letting it into the market. This section has helpful tips on how you can prepare jewelry for the welding process.

1.1, How to Produce Jewelry to be Welded

The laser welding machines are known to be the newest items in the jewelry industry. This implies that it is a technology that many jewelers have yet to learn about.

Being introduced into the industry just a few years ago, the companies that have known and are already using it are making lots of profits. If anything, the laser welding machine price is not very high for users to afford.

However, they come with tremendous benefits that will well position you ahead of other competitors.

In some parts of the market, it is almost impossible to open a trade magazine without meeting an advert of a laser welding machine for sale. In most trade shows, you will find at least one laser welding machine.

You will also notice that each of them has unique technology that makes them unique. At Superbmelt, we believe that we have some of the latest models that are worth your time and investment.

However, in this bit, we want to look at the art of laser welding, because we know that it is what matters at this moment.

You want to know how to produce jewelry to be welded, right? Now, let’s get to it. We believe that custom jewelry manufacturing is the most common in the current market, and that is what we are about to dive right into.

Custom jewelry manufacturing implies having an original jewelry design, from which many others will be produced. It is quite an interesting technique, especially if you intend to produce it on a large scale.

We started by mentioning that the jewelry industry has some of the newest items and that they are known as lasers, which is why learning about laser welding is integral.

In the rest of the piece, you will learn how most of these things work, including how you can go about finding the best laser welding machine to put your money on. Luckily, we have all the models you might need to optimize the overall productivity of your jewelry manufacturing company.

Jewelry fabrication is quite a broad topic that features everything from basic assembly to crafting hand-made jewelry. Jewelry is created by joining metals of similar properties using the welding process.

The components that can be used in jewelry fabrication include things such as cages, prongs, and heads. In this case, prongs are required to set gemstones, clutches to clasps, and the earring posts that ensure functionality.

Bench jewelers take part in the jewelry fabrication to assemble separate elements so as to integrate them into complete jewelry items.

1.2, The Historical Development of Jewelry Welding

Throughout history, people from all cultural backgrounds have been making and putting on jewelries. Most of these people saw the value of jewelry due to its quality way on which it is made, and the richness of the material used to make it.

From the ancient times, people have put on jewelry in the form of rings, necklaces, bracelets, and also to decorate their fingers, necks, and wrists. However, the quality of jewelries they wore on varies depending on the quality of materials used to make them and the level of expertise involved.

The welding history commences with the discovery and reshaping of metals in the ancient times of civilization. This started with bronze, copper, gold, silver, and iron. Metal working then became quite common in steel. Gold ornaments are still believed to be the first welded ornaments. This was around 1000 B.C.

After that time, technology remained quite similar until the onset of Industrial Revolution in the 1700’s and 1800s. During this time, the forge weld technology was developed and it involved the use of heated metals to join pieces together. This looked like the ordinary blackmisth shop.

Acetylene was discovered in the early 19th century. This was a great source of energy that was required for welding metals and jewelry. However, even after the discovery of acetylene, welding did not commence until there was enough sources of electricity in the early 20th century. This was when people started to take part in active welding of materials into desired shapes and patterns.

There was a need for military welding during World War I and II. This also marked a remarkable acceleration in the welding technology and techniques. Before WWI, people did not have enough trust in welding. They did not believe that they could use the method to join metals in essential objects such as ships because of cracking.

1.3, In Which Cases Should Jewelry Be Welded?

Welding is the last thing that most people think of when shopp9ng for the best jewelries on the market. The same goes for those looking to start jewelry manufacturing companies. But it is an integral aspect of the process that is worth studying.

If you are looking to become a jeweler, you need to know the importance of welding your pieces before letting them out into the market.

Both welders and jewelers use heat to bend and then join metals. This is just one of the many things that they share in common. In the current time, laser welding machine has become quite a staple for both welders and jewelers for reasons that we will find out later on.

It is mainly used or repair and designing jewelries because it leverages a precise heat transfer, something you might not find with other applications. This trend has also been seen in modern classroom where teachers use laser welders to mold the next generation of jewelry craftsmen.

Chapter 2:

Tools On The Market For Welding Precious Metals

There are many types of precious metals that need to be welded into valuable jewelries. But it is impossible to use one material for all of them since they need different conditions to weld. However, some tools might be ideal for more than one or two precious metals. SuperbMelt has such items, which is why you need to always talk to use before you go looking in other parts of the market. Let us take a closer look into the welding methods available on the market for jewelry.

2.1, What To Prepare Before Welding Jewelry

Welding jewelry is not something you just wake up and do. This applies even if you have the best welding equipment that can do any type of modifications to your jewelry. Therefore, we would like to inform you of the prerequisites that will help you provide clients with the most quality outcomes each time they trust you with their projects.

If you are looking to get your business started, and you have received your first assignment, here are some of things you must do to get the jewelry ready for welding.

Make sure that you receive the right details of the work expected from you. In some instances, you will be required to simply receive a piece of jewelry. In some case, you will be asked to play around with the pattern to give it a brand new look. Our team has also had clients asking for their items to be polished so that they look better at the end of the project. Make sure that you understand clearly, what your client is asking of you.

Make sure that you have enough workspace. This should be decided based on the welding equipment that you are using. Once you have done that, it is crucial to get the right settings of the technology that you are using. Note that some precious metals require higher temperature to weld compared to some. For instance, high temperatures will be needed if you are working on platinum.

The other thing you need to get ready is the mold. This is what determines the final product that you will be working on. Make sure to employ the right process in coming up with the right wax mold. If you are just a welder, you won’t have to create a wax mold because your client will give you a jewelry that has already been design. Your work will be to give it modifications as per the preferences of your client.

2.2, Different Industries Apply Different Methods

Different industries apply different welding methods. As aforementioned, the methods used depend on a number of factors. Industries could also be determined based on the size of production, type of precious metal that is being welded, or the location of the work being done. Whether you are a sole operator or a company, you can only fall into one industry at a time.

It is advisable to always use the right welding technique. The reason SuperbMelt should be your one-stop welding solution is because they know everything about all industries. They also have ideal equipment to see that you are getting exactly what you are looking for. Since our launch, we have always ensured exclusively premium services for all our clients globally.

If you feel that you need to get advised or guided on the right technique to employ to weld your jewelry accordingly, we will always be there for you. Just make sure to make contact with us on time so that you don’t miss deadline with your project. Our team always gets to work soon as you have provided them with the necessary details.

It doesn’t have to be jewelry you are trying to weld. Maybe you just need help welding some still that you need to create fascinating items for sale. SuperbMelt has all your solutions under one roof. In case you are not certain where to start, visit our website and take a closer look at the solutions we have ready for you.

In jewelry industry, there are changes that are always made every now and again. These modifications come with new trends set by high-profile individuals that many are trying to imitate. Therefore, to cop up with these dynamics, you want to become as flexible in the industry as possible. This means that having the right welding skills alongside the latest welding equipment in the industry.

2.3, Different Methods are needed for Different Metal Jewelry

Other than the industry as a whole, the next thing to consider is the type of jewelry metal. If you are looking to start a jewelry welding business, you need to make good use of the right welding equipment. Laser beam welding machine could b a great choice if you are working on metals that are rather hard. You might as well use a portable laser welding machine if you feel that you will at times need to operate remotely.

jewelry welding machine

Easy metals such as gold, which are easily malleable, will not be hard to deal with. For such metals, you don’t need too much heat to get the work done. Different methods re needed for different metal jewelry. But you can use the same equipment for most of them as long as they come with good features to let you do that.

SuperbMelt has a long history of working on different types of metals to create fascinating jewelries. Therefore, you can let them ease the tension for you in case you are stuck with anything. If you let us take care of the work, our team will consider the type of metal you are trying to weld. They will then come up with the best welding method that will not mess things up for you.

If you are not familiar with any of the recommendable methods, it would help if you take time to learn some of them. This will help you gain a good reputation as one of the best welders in the market. Though equipments come with some user manual, you still need additional knowledge and skills to hit the threshold in terms of quality production.

At SuperbMelt, we are proud that this yet another thing that we can comfortably help you with. In the next section, we have mentioned different welding methods. Therefore, do yourself a favor and keep reading this highly informative piece.

2.4, Comparison of Jewelry Welding Methods

Welding is the process through which metals are joined. The same can be done for jewelries. There are different welding methods, and we will try to mention some of them in this section.

Arc Welding

This is the method that is preferred by most welders. It could also be called stick welding. It involves the use of economical tools alongside a consistent flow of alternating current and a continuous source of energy.

Fusion is done by an electric arc that connects the base materials and the electrode and the metal that gets melted in the processes of joining. The shielding gas takes care of the part so that the work is done faster. Since this procedure involves a high rate of heat absorption, there is negligible distortion.

In this method, there are a wide range of processes such as shielded metal arc, gas metal arc, gas tungsten arc, and submerged arc.

Resistance Welding

Like most individuals and companies, you might realize that this procedure is a little expensive. This is because it demands the use of precious devices. Therefore, this is not the type of procedure that you will use most of the time. This metal involves the use of sheets of extra metals to cover the parts that should be joined.

Gas Welding

This technique is mostly used to do some renovation. This is the right method for the metals that might not survive when subjected to very high temperatures. This method is mostly applied to make jewelries, repair pipes, and some plastics.

Laser Welding

This might be the last method that we will talk about in this section. It was recently introduced and is very fast. Therefore, it is the method to consider if you are looking for something that will get the work done on time. The process might also be called energy beam welding and is highly accurate compared to other techniques. However, it is vital to inform you that this technique might be expensive for some jewelry welders.

Before you begin, make sure to consider all important aspects so that you only go for the best jewelry welding technique. You will also make use of the right equipment as long as you understand what is needed of you.

Chapter 3:

Why Do You Need a Laser Welder to Weld Your Jewelry?

Have you used any method to weld jewelry? If you have, then you will admit that laser welding machine is one of the best devices you can ever use to weld jewelry. If you haven’t, keep reading to learn about the advantages you get from using a laser welder that you might not get by using other welding techniques.

3.1, Advantages of Laser Welding Method for Jewelry Compared to Other methods

We have kind of been advising you to choose laser welding over other methods of dealing with jewelries. We have our reasons, and they have been mentioned in this section. Make sure that you have gone through them so that you make the most informed decision at the end of the day.

Let’s keep learning. Many advantages are linked with using laser welder in jewelry repair compared to traditional methods. To give you a better understanding of this process, we need to compare it with soldering, which is kind of traditional in this aspect.

Soldering is a capillary fill system in which the solder gets heated using a gas (oxygen), open fame or a torch. The solder will then flow across to have the gap filled up. In this process, the heat used is very high. The problem with this process is that it always leads to dark spots that are easily visible. It might also lead to discoloration in the solder sections. If you are soldering with a torch, the heat only gets applied to vast areas, which then results in heat transfer.

If you are not cautious enough, you might destroy or rather burn the sensitive areas of the jewelry. Therefore, you must take care not to burn sensitive parts in close proximity to the flame. But this might be a hard thing to do and it requires lots of keenness. This will never be the case with laser welding machine.

Laser means Amplification by Stimulated Emission of Radiation. Unlike traditional welding methods, laser welding is a process that does not involve any contact with the product being welded. It is a method that entails the use of light energy to weld precious metals to themselves.

This can be done to repair, modify or give them a fine touch. The heat that is used in the welding process is quite localized. This means that it will not be transferred to other areas since that might damage sensitive parts of precious metals.

When you are done welding your precious metal, you will get a perfect job without any detectable work. It does not in any get discolored. Amid the laser welding, the parts adjacent to the welding areas will not melt. The precise heat source lets the users to laser weld items in a very close proximity of heat sensitive parts without affecting them in any way.

Due to this super-focused source of heat, the laser welding equipment will not anneal clips or springs hence eliminating the need to have to replace the damaged findings. When using a mini laser welding machine, you will learn that the beam is highly concentrated. This feature makes it burn and do away with any impurities in the process of working on the precious metal.

With this functionality, you will not have to thorough-clean the parts before you start working on them. This implies that laser welding is such a reliable process that can be applied on dirty, tarnished, or impure surfaces without leaving behind any dark markings or discolorations.

3.2, With Laser Welding, You Don’t Need To Spend Extra Time Preparing For Work in Advance

Laser welding machine is an advanced technology that lets you weld jewelry within the shortest time possible. You can get to work as soon as you have done the settings and gotten the right precision. This is the reason most jewelers are interested in using this technology. The other benefits of using laser welding machine include:

  • Ensures pinpoint accuracy for neat, and perfect laser welded joints
  • Compact, self-contained cooling system
  • Laser weld spot diameters runs from 0.05mm-2.00m
  • There is no concern about color matching or karat
  • The localize heat lets you do multi-pulsing without interfering with the previous work
  • Maximum output pulse shaping

It is vital to learn how to use laser welding machine before you begin using it. Note that it is an ever-growing technology. Therefore, you need to keep yourself posted on new improvements. SuperbMelt is a team that is there to help you with anything related to laser welding. We can also help you if your equipment develops complications.

Chapter 4:

What should be Paid Attention to When Purchasing Jewelry By Laser Welding

Whether you are an established company or a startup, knowing what to consider when buying laser welding equipment is important. We do care for you, your money, and the productivity of the company. Therefore, we believe that with this buying guide, you will not make a wrong investment. Take a look at some of the things you should be looking for before buying fiber laser welding machine.

Consider the Price

Nothing is more important than thinking about the price of the product. Though you are looking to optimize the productivity of your company, make sure that you do not put all your money into this single bit of the project. Do your homework and come up with a budget. This budget will help you determine the maximum amount of money you can spend on laser welding machine. Note that it is possible to determine the budget by coming up with an integral plan. If you are looking to do lots of production, then you will need an advanced machine, which might cost a little higher.

Consider the size of the production

Your choice of fiber laser welding machine should be inspired by the scale of production for which you intend to apply it. There are laser welding machines of all sorts. If you are looking to do a lot of production, then you need to get a machine that can easily stand that sort of work. However, there are ones meant for small shops, and they are great for small scale production. Before you start shopping, understand the nature of your company along that line, and you will never go wrong. Superbmelt should be your number one stop if you are looking for machines that match the type of work you intend to do.

Consider the features

Always invest in machines that feature unique features to enhance the productivity of your company. Understandably, the features play a central role in determining the prices of various casting machines available. However, if you go for the best, then you will always have a long-term financial gain because you shall have gained a competitive edge. Some machines are automatic, while some come with parts that are mostly manual. Note that because a machine is manual does not mean it won’t function optimally. Just take your time and think carefully so that you make the best decision.

The reputation of the Manufacturing Company

Many manufacturing companies join the market almost every other day. Some of them are good, while others are only there to make money. Therefore, before making an investment, you have to do your homework thoroughly. Maybe you want to create a list of all manufacturing companies and then doing a background search. You need to find out the nature of the machines they make and how they perform. Unless you do your research well, forget about getting the best item for your production. If you check, you will learn that Superbmelt has some of the best machines that have been bought by clients from all parts of the globe and that they work perfectly.

Durability

It is great to use products that will last long enough. You don’t want to go shopping every other day. To overcome such issues, you want to secure fiber laser welding machine that will last several years before you need to get a new one. Also, durable products are those that do not require regular maintenance. They can withstand elements without being degraded. Superbmelt deals with such products, and they have gained a good reputation in the market due to the quality of products that they sell. Our products are the best because they come with unique features that are also durable. You can regulate them to hit any rate of performance you need.

Environmental Friendliness

All manufacturing industries are aware that the environment should be prioritized. Their applications must be ones that are focused on quality outputs that do not, in any, way interfere with the environment. At Superbmelt, we are always on the frontline on the fight against the emission of elements that might cause health complications among the users. Therefore, talk to us today, and we will help you get something that you will enjoy using for years to come.

Maintenance Cost

Best laser welding machine should be one that does not subject you to expenses every now and again. And when they do, it should not be overwhelming. Therefore, you want to use a product that has features that are well developed so that they do not get spoilt every now and again. This might add to durability, but maintenance might also come depending on the nature of the application.

4.1 What Kind of Jewelry Laser Welding Machine is Suitable for Your Needs

SuperbMelt is a key player in the laser welding industry, and has, therefore, gained enough knowledge of how the market works through the years. This makes us the right team to consult if you are looking to have the best jewelry laser welding machine in your company. Making mistakes that have been made by others in the past is easier, especially if you make a rush decision in your purchase of a laser welding machine. But do not worry yourself because we have the best information that will help you make the most informed decision.

Now, we intend to share with you some of the key benefits of handheld fiber laser welding machine and why you should consider it over other machines. The factors we have shared here are more important than the handheld laser welder cost.

Handheld laser welding machine will not take too much of your working space since it comes in a compact design. It frees up more space for you due to its small body shape. This also reduces the overall cost of the equipment to take up the plant space. Laser welding machine handheld is easier to use, thereby makes it reduce the cost of labor. The user-friendly design and enhanced technology are just a few of the many things you will enjoy while using the machine.

After you are done with welding, there will be no need for secondary grinding because you will be getting a perfect outcome. It is an exquisite welding machine that is close to none due to easy applicability. These aspects help to reduce professional limitations, which mean there is no lengthy learning curve, even if you are a novice in the jewelry welding industry.

Handheld laser welding machine might be the best choice if you are looking to reduce the maintenance cost by selecting the machine that is meant to serve. The product features a continuous laser mode. Compared to the traditional welding machines, it has a smooth welding transition, so you will not be seeing any fish scales after you are done welding your precious metal or jewelry.

It comes with a small welding thermal influence area, and a tiny yellow-haired black area. When using this machine, you will get a negligible size of the deformation area, therefore, the beauty of the welding area has been greatly enhanced due to the technology leveraged by the machine. You will not need to add any welding wire while using this technology, so you will not incur any supplies cost.

4.2 What Parts are the Core of Laser Welding and How to Maintain Them?

Here are some of the things you should take the best care of once you are secured your fiber laser welding machine.

We have the fibre optic cable, which plays a central role as far as the laser welding process is concerned. It is this cable that delivers the laser to the welding area. This cable features a central core which transfers the laser. It also has a cladding region that acts as the mirror to the laser. It is this part that ensures all the light is maintained in the core. There is an outer jacket that protects the light from any leakage. The diameter of the fiber might vary depending on the model or laser technology you are using.

Focus optics is the next thing you need to know about as you strive at ensuring that your machine is in the right working condition all the time. This is the part that images the end section of the fibre perfectly. It is the fibre optic that transfers the beam to the focus head where the beam gets collimated before being focused on the spot. The large can be enlarged or reduced as per the ratio of the focus and collimating lens.

Also, the focus optics could be used to perfect the size of the spot for the application or rather provide a modified spot size when a larger core diameter fiber has to be employed for handling enhanced power.

Pulse Power and Pulse Width is also another important thing we need to look into. The peak power is usually measured in watt and has a direct impact the density of the peak power. It is the peak power density that regulates the weld penetration. Therefore, to avoid glitches, you want to ensure that the adjustments are done the right way.

Chapter 5:

Wrap Up

Many jewelers are still not aware that they could weld jewelries to come up with fascinating final products. The use of laser welding machines is the most common technique used in jewelry welding. It can be used to add unique shapes and designs to jewelry before letting it into the market. This section has helpful tips on how you can prepare jewelry for the welding process.

The laser welding machines are known to be the newest items in the jewelry industry. This implies that it is a technology that many jewelers have yet to learn about. Being introduced into the industry just a few years ago, the companies that have known and are already using it are making lots of profits. If anything, the laser welding machine price is not very high for users to afford. However, they come with tremendous benefits that will well position you ahead of other competitors.

In some parts of the market, it is almost impossible to open a trade magazine without meeting an advert of a laser welding machine for sale. In most trade shows, you will find at least one laser welding machine. You will also notice that each of them has unique technology that makes them unique. At Superbmelt, we believe that we have some of the latest models that are worth your time and investment.

Laser welding machine is an advanced technology that lets you weld jewelry within the shortest time possible. You can get to work as soon as you have done the settings and gotten the right precision. This is the reason most jewelers are interested in using this technology.

Many advantages are linked with using laser welder in jewelry repair compared to traditional methods. To give you a better understanding of this process, we need to compare it with soldering, which is kind of traditional in this aspect.

Soldering is a capillary fill system in which the solder gets heated using a gas (oxygen), open fame or a torch. The solder will then flow across to have the gap filled up. In this process, the heat used is very high. The problem with this process is that it always leads to dark spots that are easily visible. It might also lead to discoloration in the solder sections. If you are soldering with a torch, the heat only gets applied to vast areas, which then results in heat transfer.

If you are not cautious enough, you might destroy or rather burn the sensitive areas of the jewelry. Therefore, you must take care not to burn sensitive parts in close proximity to the flame. But this might be a hard thing to do and it requires lots of keenness. This will never be the case with laser welding machine.

Laser means Amplification by Stimulated Emission of Radiation. Unlike traditional welding methods, laser welding is a process that does not involve any contact with the product being welded. It is a method that entails the use of light energy to weld precious metals to themselves. This can be done to repair, modify or give them a fine touch. The heat that is used in the welding process is quite localized. This means that it will not be transferred to other areas since that might damage sensitive parts of precious metals.

Chapter 6:

FAQ Guide

Does Welding Consume Precious Metals?

There is now way welding can consume precious metal as long as the right technology is applied. Fiber laser welding machine, for instance, is created to use an advanced technology that is meant to provide you with exquisitely welded parts. Make sure that the right settings and adjustments are done and maintained throughout the welding process and you won’t have to worry about anything related to precious metal being consumed. If you are unsure about anything mentioned in this section, you can always liaise with us to assist accordingly. We will ensure that you get what you are looking for.

Does Welding Require Additional Metal?

Unless you are using other welding techniques, laser welders do not require any additional metals to do. Instead, lasers are used to join and polish metals that are hard to work on because they do need any additional metals. For instance, jewelries are made of precious metals, and you might just be looking to prefect it without altering its natural beauty. However, if you are trying to join it with other metals, then there is no harm in doing that. But this means you will be using metals of similar quality to come up with something much better.

How Strong is Laser Welding?

Laser welding provides you with enhanced speeds of up to five to ten times faster than the TIG welding and three to five times faster than MIG welding in certain applications. It might as well be the best choice if you are looking for the best alternative to resistance spot welding.

Which Types of Laser Can be used In Jewelry Welding?

You must have learned that there are different types of laser welding machines. Therefore, they work in different ways, which is why we recommend that you first understand the nature of work you need done before making an investment. The main types of laser welding machines include:

  • Gas Lasers: These use a mixture of gases like nitrogen and helium. We also have carbon dioxide or CO2 lasers.
  • Solid state lasers: These machines operate at 1micrometer wavelengths. They could either be pulsed or rather operated continuously.
  • Diode Lasers

Can You Weld with a Laser?

Laser Beam Welding also known as LBW, is one of the latest welding technologies. It is used to join tiny and large pieces of metals together. It might as well be used to join thermoplastics via the use of a laser. It is the beam that ensures concentrated source of heat hence allowing for deep, narrow welds and very high welding rates. This technology is based on penetration or keyhole mode welding. From this illustration, you can see that you can use a laser to weld as long as you know how best to use the application.

Where is laser welding used?

There is a wide range of applications in which fiber lasers can be used. They can be used to weld very small parts together. This type of application is mostly used by manufacturing companies in the medical, engineering and electronic industries. It can also be used to weld thicker materials in the automotive and aeroscope industries.

Can you laser Weld Aluminum?

Yes, you can laser weld aluminum as long as you have the right machine in your workspace. At SuperbMelt, we make good use of laser beam in the welding process and we have never been disappointed. It is one of the key services we provide when it comes to welding aluminum. This process is great for procedures that need clean and fast welds. With this process, you will learn that you only have a very small space affected by the heat. You will get a weld penetration of up to 0.25 inches in aluminum. Therefore, go ahead and laser-weld your aluminum if you really have to.

How Much is a Laser Welder?

This technology is the latest in the laser welding industry and is therefore not very easily affordable. For handheld laser welding machine, you might have to spend around $25,000. If you are looking for the best product, you need to talk to us for a great deal. We keep improving the qualities of our products to match the expectations of our clients.

What is The Principle of Laser Beam Welding?

Laser Beam Welding is the application which a coalesce of a material is produced using the heat that is obtained from the application of a concentrated coherent light beam. This beam is usually focused on the surface that is being welded or joined. The focused laser beam features a very high level of energy concentration of any known source of energy.

What material can be Laser Welded?

Laser welding material can be used to weld and fuse all standard metals and thermoplastic items. On top of that, the laser technology lets you work on other materials such as:

  • Mild steel
  • Aluminum
  • Copper Berryllium
  • Ni-Chrome
  • Nitinol
  • Stainless Steel
  • Inconel
  • Kovar
  • Platinum
  • Titanium

Does Welding Weaken Metal?

Yes, steel might get weak upon welding, especially around the heat affected zones. This happens mostly when welding it done at extremely high temperatures. Cases of weakening upon welding tend to be common with cold-rolled steel.
