Silver Smelter
The Most Popular 20-30kg SuperbMelt Silver Smelter on the Market
With a quick melting speed, the SuperbMelt silver melting furnace can melt 10-100kg of silver.
SuperbMelt is a company that specializes in the manufacture and supply of precious metal processing equipment. This chapter is about the Silver Smelter, a product of SuperbMelt.
The Silver Smelter from SuperbMelt uses induction heating technology, which can quickly and effectively dissolve silver, resulting in fully dissolved and refined silver. This technology is also extremely safe.
The Silver Smelter is small, convenient to store, and easy to operate. It is equipped with a data display screen that can monitor the parameters of silver smelting very well. It is also suitable for individuals to refine silver or other precious metals at home. Additionally, the machine’s environmental performance is quite good, as it will not emit or produce harmful substances during the smelting process. This feature is also valued by enterprises, making the SuperbMelt silver smelting machine an ideal choice for businesses.
- SuperbMelt silver melting furnace adopts solid-state technology, which is the latest and most advanced IGBTs module available worldwide. rgy than KGPS,100% full load.
- The current between the furnace’s coil and the power supply is insulated, which is the safest guarantee for users.
- SuperbMelt silver melting furnace is an easy, convenient and practical way to melt precious metals. It has a split design that allows you to tilt liquids with the push of a button or with a manual lever if you prefer to pour.
- The furnace is equipped with a new type of high-performance asynchronous generator, which can reach the melting point significantly faster and ensure the full mixing and homogenization of the molten metal.
- The precise electromagnetic shielding of the furnace ensures that the energy generated by induction is as small as possible. This method also greatly reduces the electromagnetic load of the user.
- Better process control with a high degree of controllability and repeatability, 24H continuous works realizes a high production rate.
- Efficient circuit with low energy consumption, reliable, easy to maintain and service, easy to install and simple to operate.
- Installation and maintenance are convenient, and IGBT technology saves 15-30% energy compared to KGPS 100% at full load. It can be done via video or our manual guide. This reduces the cost you need to pay for installation by foreign engineers.
- The occupied land for the gold melting furnace is less than 2 square meters. Low pollution, low noise. 24 hours of uninterrupted work, to satisfy your long-term melting.
- It is convenient to replace the crucible different metal materials smelting.
- SuperbMelt silver melting furnace with multi-protective functions to over-voltage, over-current, less water, over-heating with low fault rate and is safe and reliable.
Power Supply Parameter of Multi Tilting Silver Melting Furnace
| Model | RTF-35 | RTF-45 | RTF-70 | RTF-90 | |
| MAX input power | 35KW | 45KW | 70KW | 90KW | |
| MAX input current | 51A | 68A | 105A | 135A | |
| Input voltage | Three-phase 340V ~420V 50/60Hz | ||||
| Oscillation frequency | 1K~20KHz | ||||
| Requirement of cooling water | Hydraulic pressure | ≥0.3Mpa | |||
| Flow rate | ≥20L/Min | ||||
| Temperature of water | ≤45℃ | ||||
| Power supply | 70*40*100cm | ||||
| Furnace body | 80*70*90 cm | ||||
| Weight | 220kg | 230kg | 240kg | 250kg | |
Melting Capacity Parameter of Multi Tilting Silver Melting Furnace
| Model | Fe, ss | Cu, Au, Ag | Al, Al-alloy |
| RTF-35 | 10kg | 30kg | 10kg |
| RTF-45 | 18kg | 50kg | 18kg |
| RTF-70 | 25kg | 80kg | 25kg |
| RTF-90 | 40kg | 120kg | 40kg |
| Remark: Above melting capacity sheet for general reference; Melting duration: When the crucible is hot,20~30min./workload; When the crucible is cold(first melt),40~50min./ workload. | |||
Graphite crucible for gold/Silver melting Furnace
Any Question About SuperbMelt Multi Tilting Silver Melting Furnace
silver smelter
In many production processes, including metallurgy, silver smelting, casting, and scrap steel processing, the dumping melting furnace is a crucial piece of machinery. It is a furnace created to turn waste metal or other materials into a liquid condition so they can be cast into new forms or used to create alloys.
Parameter
- Capacity: 30-120kg
- Power: 35kw-90kw
- Application: gold, silver, copper、aluminum

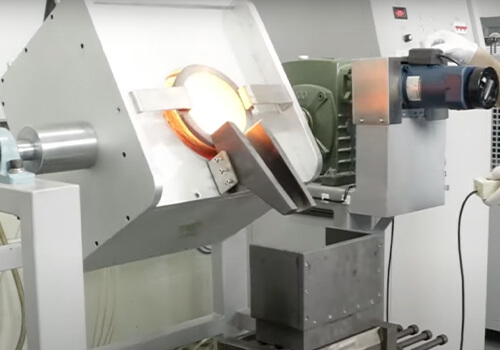

Shaking and dumping:
When the solution is poured by remote control j melted metal n can be poured more safely into the feeler
Fast and uniform melting of precious metals such as gold and platinum, greatly improving the quality of melting
The SuperbMelt silver melting furnace makes melting precious metals simple, handy, and useful. With its split design, you may tilt liquids with the touch of a button or manually with a lever if you’d rather pour.
Why You Could Choose Superbmelt
2 years warranty
The warranty for our machine is one year longer than the warranty provided by other factories.
ISO CE SGS approved
Professional certification bodies certify that the machines are of high quality.
Strong service team
We will give response within 24 hours against your problem by our professional engineer.
What is included in the Silver smelting kit?
Furnace: heats precious metal materials, such as gold and silver, to the melting point.
Crucible: a vessel in which materials are melted, extremely heat-resistant, made of graphite or ceramics.
Safety equipment: heat-resistant gloves, goggles, etc.
Instructions: various usage methods and smelting tips.
Superb Electromachinery Co., Limited
- No.55 Anhua Road, Henggang Town, Longgang District, Shenzhen City, China.
- +86-755-28838424
- +86-755-28883730
- +86-18857719978 (WhatsApp)
- kelvinlinxm
- sales@superbmelt.com
Split type manual tilting gold melting induction furnace
The 20-30 kg manual tilt induction melting furnace is perfect for large scale melting needs. It utilizes digital induction technology for precise applications and features an all-around heating system for added safety during operation. With a maximum temperature of 1800 degrees Celsius, it can melt gold, silver, brass, copper and other non-ferrous metals in as little as 6 to 8 minutes. The tilted design makes it easy to pour into the mold and ensures uniformity of the melted metal. The furnace has 25KW to 35KW of power and is equipped with a water cooling system that allows for extended run times without causing harm to the environment. It is both reliable and safe, making it ideal for your high temperature induction melting furnace needs.
Parameter
- Capacity: 20-30kg
- Power: 25kw/35kw
- Application: gold, silver, copper, iron etc.
Chain type tilting induction metal melting furnace
The 10-50 kg chain tilting induction melting furnace is an affordable option for those who need to melt large amounts of metal. Its zero-emission operation makes it environmentally friendly, and its motor-driven chain tilting technology increases efficiency and ensures easy metal pouring. This furnace can accommodate three different furnaces at the same time and has a power range of 15 KW to 90 KW. it uses IGBT technology for 30% power savings and is equipped with an omni-directional warning system to alert the user to any problems. This tilting metal furnace is able to work continuously for 24 hours with less noise and pollution, making it a reliable choice for melting almost all types of metals.
Parameter
- Capacity: 10-50kg
- Power: 15kw/45kw
- Application: gold, silver, copper, iron etc.
Electric induction melting furnace
The 10-100 kg motor tilting induction melting furnace is a high-end but user-friendly melting furnace for ferrous and non-ferrous metals. It has an input power range of 15KW-160KW and can efficiently melt gold, steel, silver, stainless steel, brass, aluminum, lead, zinc, etc. The IGBT technology used in this furnace provides energy savings of 15-30%, making it an energy-saving option. The crucible for melting cast iron is easy to change and takes up less space for all melting applications. This motorized tilting furnace produces low noise and no harmful fumes to the environment. It can work continuously for 24 hours.
Parameter
- Capacity: 10-100kg
- Power: 15kw/160kw
- Application: gold, silver, copper, iron etc.
Hydraulic metal melting furnace
The 50-250kg hydraulic tilting induction melting furnace is the perfect solution for melting various types of metals effortlessly. With the convenience of interchangeable crucibles and a control system that ensures optimal performance, this furnace guarantees efficiency and productivity. The machine can operate continuously for 24 hours, and its omni-directional warning system ensures maximum safety by monitoring key parameters. The melting furnace uses IGBT technology to save 15-30% of power, with a power input of 45KW to 160KW. The tilting function can be remotely controlled with a trolley panel. The melting furnace is easy to install, operate, and maintain, with a strong steel shell furnace that ensures durability and longevity.
Parameter
- Capacity: 50-250kg
- Power: 15kw/160kw
- Application: gold, silver, copper, iron etc.
- Despite the fact that there are numerous types of furnaces available on the market for melting silver scrap, a SuperbMelt silver melting furnace will be your best bet. Due to its higher level of electrical conductivity than the other metals, silver will respond to the induction in this procedure properly. Moreover, silver has good heat conductivity levels.
- An induction silver melting process produces very little pollution and uses little energy. In reality, you can melt silver in a matter of minutes with SuperbMelt’s equipment. Better control and predictable results are what these machines are all about. Visit the official SuperbMelt website today to place your order.
- Prepare silver scraps and silver nuggets and then weigh and measure them.
- Choose a suitable silver melting furnace and preheat the equipment to a temperature suitable for silver smelting, generally 1,100°C (2,012°F).
- Put the silver to be smelted into the crucible equipped with the melting furnace, and then add flux to the crucible. The flux can effectively remove impurities from the silver and improve the fluidity of the molten silver.
- Put the crucible into the preheated melting equipment to melt it.
- After the silver is refined, pour it into a mold to solidify and cool.
- Take the smelted silver out of the mold, clean it, and then do further processing according to the requirements.
- Silver melts at a temperature of 961 degrees Celsius, which is much greater than that of gold. To melt the silver at the desired temperature more quickly, utilize an induction silver melting equipment made by SuperbMelt. Furthermore, borax can be used to soften the oxidized layer. Our induction furnaces use cutting-edge technology to give you precise smelting and melting processes. Call us right now for a free estimate.
When it comes to buying induction silver smelting equipment, you need to consider different things, such as:
- Understand the melting points of the metals you want to melt, as these machines are designed to heat up to a specific temperature limit. Chose a model accordingly.
- Besides, don’t forget to check the maximum melting capacity of the silver melting equipment.
- You should know the energy requirement of the machine.
- Furthermore, budget, business model, furnace crucible, and method of melted metal removal need to be taken into consideration.
- Silver Material Preparation: The first step in the procedure is to get the silver-containing material ready for refinement. The material may need to be crushed, ground, or otherwise processed in order to reveal the silver particles.
- Then, an electrolytic cell is made by combining two electrodes—a cathode and an anode—with a solution that contains the silver substance. The cathode is often constructed of silver, while the anode is typically formed of an inert substance like platinum or graphite.
- Application of Current: After the electrolytic cell is set up, the electrodes receive a direct current that attracts silver ions to the cathode. Silver ions build up on the cathode to create a pure silver deposit that can be taken out and refined further.
- A sufficient amount of silver can be deposited on the cathode before it can be collected and refined further utilizing further refining techniques like cupellation or smelting.
